2007 April 16.
Loop shaped spring, lever for hand-setting:

What's to be done:
(

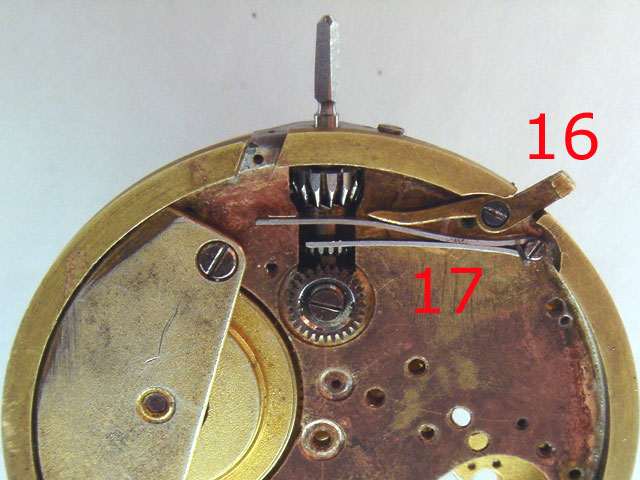

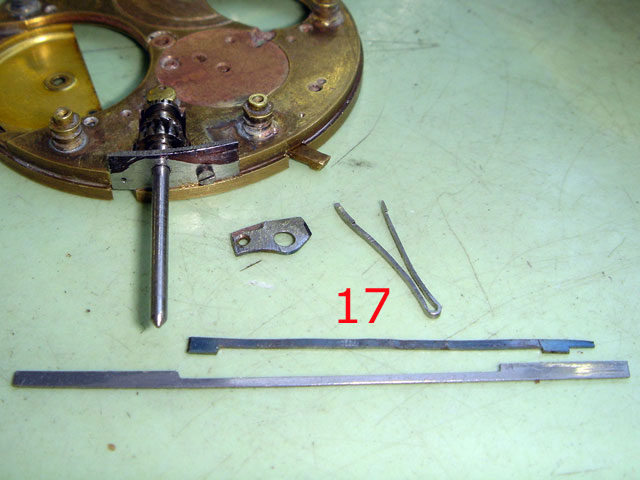

17) The spring with its screw. The spring pushes the castle wheel against thesetting wheel. The photo shows the prepared steel piece. The component is to harden and to temper.
Usable is:
(

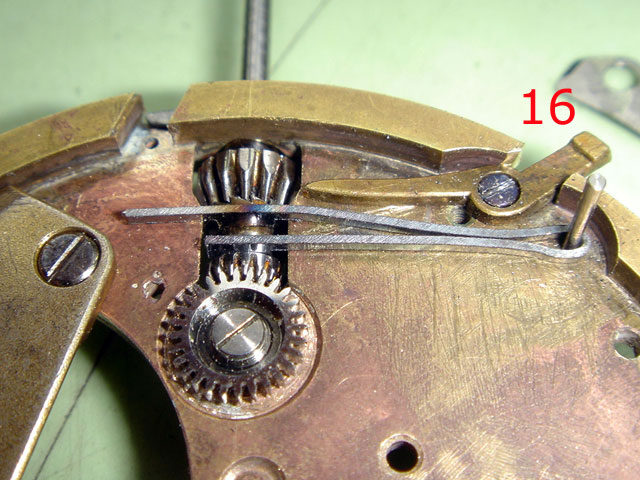

16) The brass lever, but it must fit proper. The screw is to renew.
Unusable is:

The setting wheel is to renew, because it is to small and does not find the mesh into the minute wheel.
The current wheel came from Glash¬łtte and belongs to an other caliber.

<<
>>
<<
